Artificial Horizon and Compass Using Arduino-Processing-MPU6050

Hi everyone,

Today we will realize our artificial horizon using Arduino, Processing and MPU 6050 IMU.



In this application I use Arduino Uno, If you should use different card, you should examine i2c communication for your card.

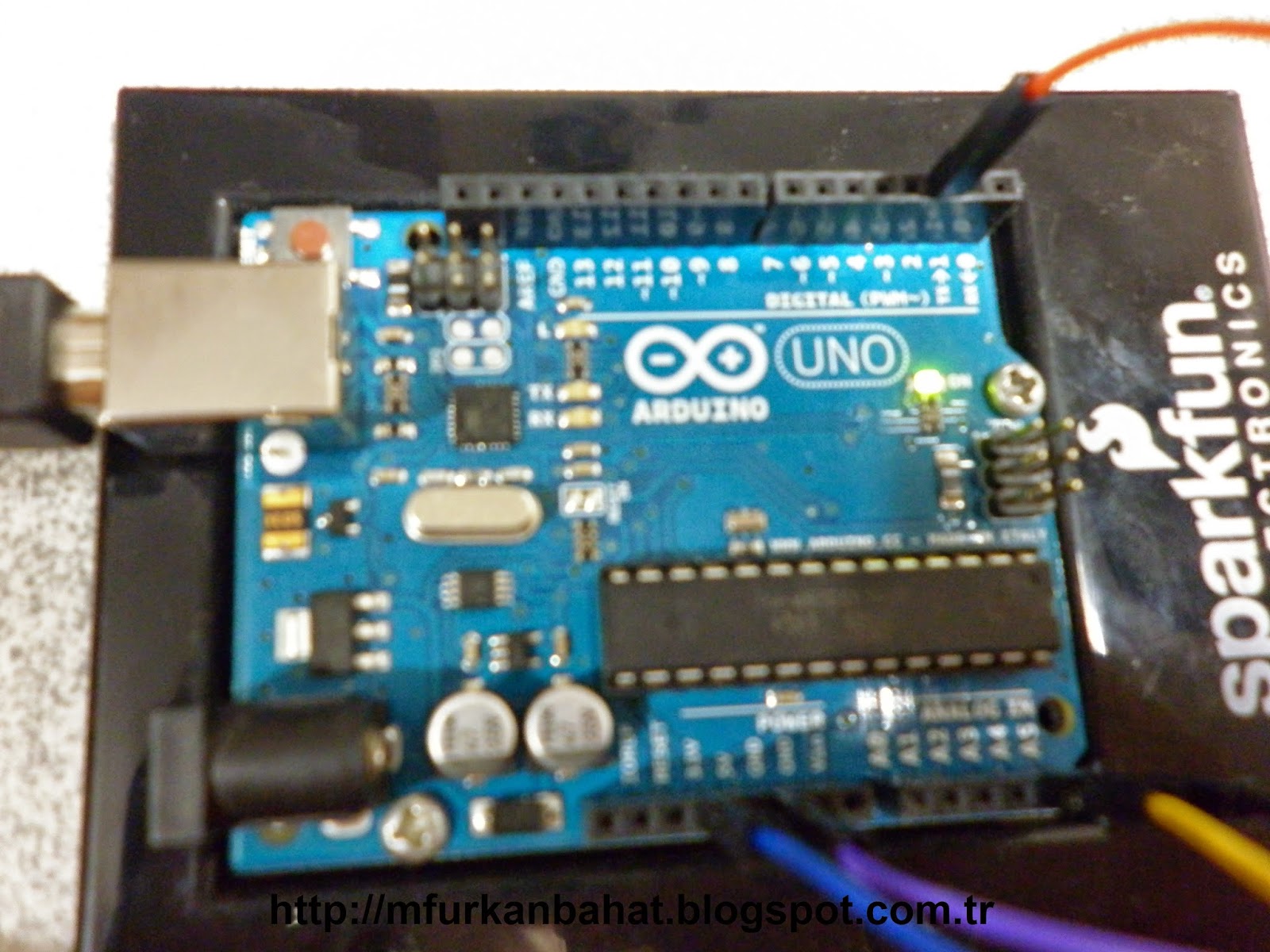

For Arduino Uno connections will be like that:

MPU6050 Pins     Arduino Uno Pins

Vcc                        3.3V
Gnd                       Gnd
SCL                       A5
SDA                      A4
INT                       2 (Digital Pin)


This my MPU6050, if you want more information about it:

http://www.invensense.com/mems/gyro/documents/PS-MPU-6000A-00v3.4.pdf

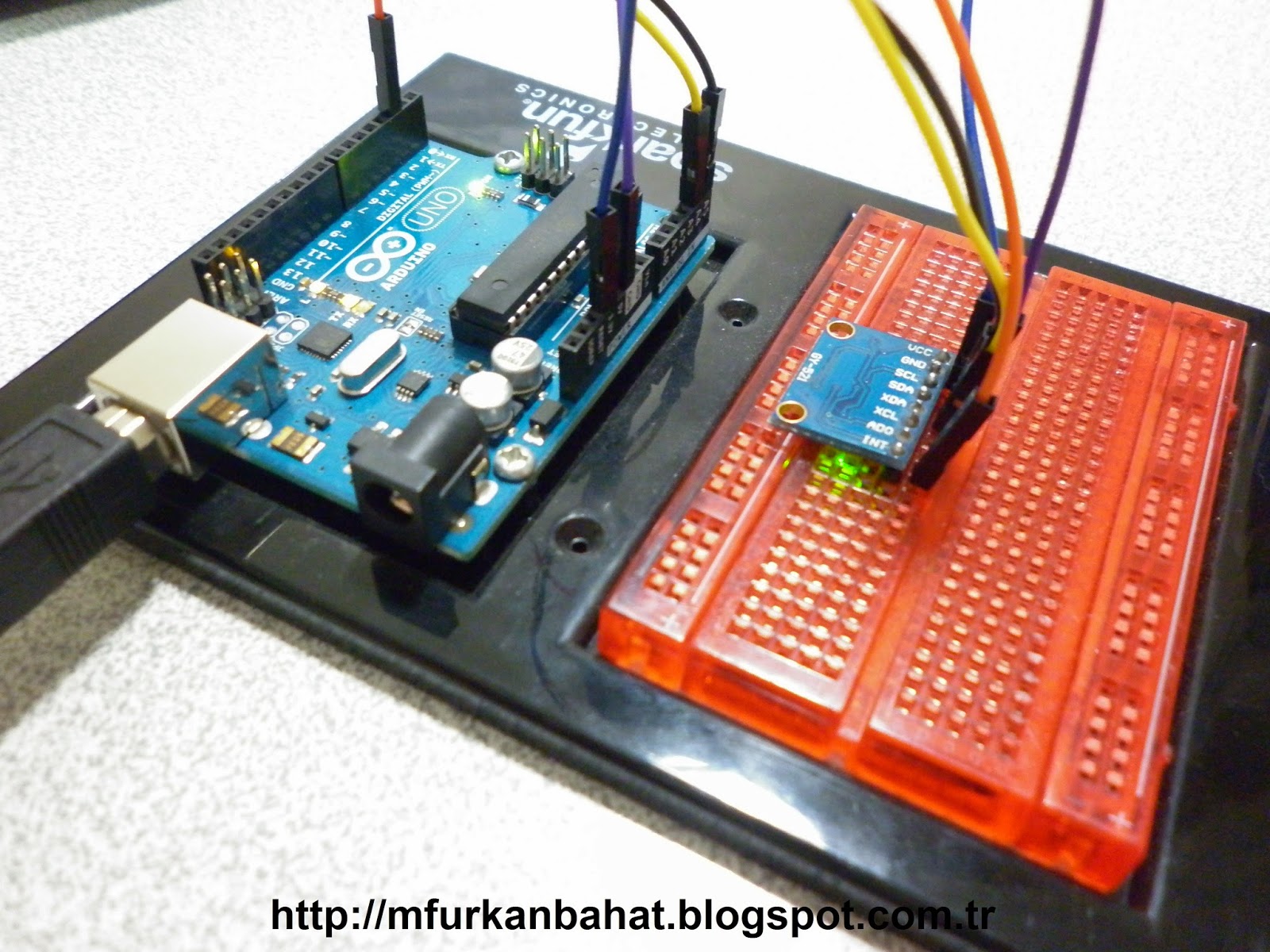

After it we connecting the MPU6050 to Arduino.


If our Arduino-MPU6050 system is ready, we can begin to try it. In this level, we should read three dimensional degrees which are Phi, Theta, Psi on MPU6050 using serial monitor.

For doing this of course we need the code,

Here is the arduino code:

// M.Furkan Bahat , November 2014
// For more information  http://mfurkanbahat.blogspot.com.tr/

#include "I2Cdev.h"
#include "MPU6050_6Axis_MotionApps20.h"

#if I2CDEV_IMPLEMENTATION == I2CDEV_ARDUINO_WIRE
    #include "Wire.h"
#endif

MPU6050 mpu;
#define OUTPUT_READABLE_YAWPITCHROLL
#define LED_PIN 13
bool blinkState = false;

// MPU control/status vars
bool dmpReady = false;  // set true if DMP init was successful
uint8_t mpuIntStatus;   // holds actual interrupt status byte from MPU
uint8_t devStatus;      // return status after each device operation (0 = success, !0 = error)
uint16_t packetSize;    // expected DMP packet size (default is 42 bytes)
uint16_t fifoCount;     // count of all bytes currently in FIFO
uint8_t fifoBuffer[64]; // FIFO storage buffer

// orientation/motion vars
Quaternion q;           // [w, x, y, z]         quaternion container
VectorInt16 aa;         // [x, y, z]            accel sensor measurements
VectorInt16 aaReal;     // [x, y, z]            gravity-free accel sensor measurements
VectorInt16 aaWorld;    // [x, y, z]            world-frame accel sensor measurements
VectorFloat gravity;    // [x, y, z]            gravity vector
float euler[3];         // [psi, theta, phi]    Euler angle container
float ypr[3];           // [yaw, pitch, roll]   yaw/pitch/roll container and gravity vector

// packet structure for InvenSense teapot demo
uint8_t teapotPacket[14] = { '$', 0x02, 0,0, 0,0, 0,0, 0,0, 0x00, 0x00, '\r', '\n' };

// ================================================================
// ===               INTERRUPT DETECTION ROUTINE                ===
// ================================================================

volatile bool mpuInterrupt = false;     // indicates whether MPU interrupt pin has gone high
void dmpDataReady() {
    mpuInterrupt = true;
}

// ================================================================
// ===                      INITIAL SETUP                       ===
// ================================================================

void setup() {
    // join I2C bus (I2Cdev library doesn't do this automatically)
    #if I2CDEV_IMPLEMENTATION == I2CDEV_ARDUINO_WIRE
        Wire.begin();
        TWBR = 24; // 400kHz I2C clock (200kHz if CPU is 8MHz)
    #elif I2CDEV_IMPLEMENTATION == I2CDEV_BUILTIN_FASTWIRE
        Fastwire::setup(400, true);
    #endif

    // initialize serial communication
    // (115200 chosen because it is required for Teapot Demo output, but it's
    // really up to you depending on your project)
    Serial.begin(115200);
    while (!Serial); // wait for Leonardo enumeration, others continue immediately
    mpu.initialize();
    devStatus = mpu.dmpInitialize();

    // supply your own gyro offsets here, scaled for min sensitivity
    mpu.setXGyroOffset(220);
    mpu.setYGyroOffset(76);
    mpu.setZGyroOffset(-85);
    mpu.setZAccelOffset(1788); // 1688 factory default for my test chip

    // make sure it worked (returns 0 if so)
    if (devStatus == 0) {
        mpu.setDMPEnabled(true);

        // enable Arduino interrupt detection
        //Serial.println(F("Enabling interrupt detection (Arduino external interrupt 0)..."));
        attachInterrupt(0, dmpDataReady, RISING);
        mpuIntStatus = mpu.getIntStatus();

        // set our DMP Ready flag so the main loop() function knows it's okay to use it
        //Serial.println(F("DMP ready! Waiting for first interrupt..."));
        dmpReady = true;

        // get expected DMP packet size for later comparison
        packetSize = mpu.dmpGetFIFOPacketSize();
    } else {

        Serial.print(devStatus);
        Serial.println(F(")"));
    }

    // configure LED for output
    pinMode(LED_PIN, OUTPUT);
}

// ================================================================
// ===                    MAIN PROGRAM LOOP                     ===
// ================================================================

void loop() {
    // if programming failed, don't try to do anything
    if (!dmpReady) return;

    // wait for MPU interrupt or extra packet(s) available
    while (!mpuInterrupt && fifoCount < packetSize) {

    }

    // reset interrupt flag and get INT_STATUS byte
    mpuInterrupt = false;
    mpuIntStatus = mpu.getIntStatus();

    // get current FIFO count
    fifoCount = mpu.getFIFOCount();

    // check for overflow (this should never happen unless our code is too inefficient)
    if ((mpuIntStatus & 0x10) || fifoCount == 1024) {
        // reset so we can continue cleanly
        mpu.resetFIFO();
        //Serial.println(F("FIFO overflow!"));

    // otherwise, check for DMP data ready interrupt (this should happen frequently)
    } else if (mpuIntStatus & 0x02) {
        // wait for correct available data length, should be a VERY short wait
        while (fifoCount < packetSize) fifoCount = mpu.getFIFOCount();

        // read a packet from FIFO
        mpu.getFIFOBytes(fifoBuffer, packetSize);

        // track FIFO count here in case there is > 1 packet available
        // (this lets us immediately read more without waiting for an interrupt)
        fifoCount -= packetSize;

        #ifdef OUTPUT_READABLE_QUATERNION
            // display quaternion values in easy matrix form: w x y z
            mpu.dmpGetQuaternion(&q, fifoBuffer);
            Serial.print("quat\t");
            Serial.print(q.w);
            Serial.print("\t");
            Serial.print(q.x);
            Serial.print("\t");
            Serial.print(q.y);
            Serial.print("\t");
            Serial.println(q.z);
        #endif

        #ifdef OUTPUT_READABLE_EULER
            // display Euler angles in degrees
            mpu.dmpGetQuaternion(&q, fifoBuffer);
            mpu.dmpGetEuler(euler, &q);
            Serial.print("euler\t");
            Serial.print(euler[0] * 180/M_PI);
            Serial.print("\t");
            Serial.print(euler[1] * 180/M_PI);
            Serial.print("\t");
            Serial.println(euler[2] * 180/M_PI);
        #endif

        #ifdef OUTPUT_READABLE_YAWPITCHROLL
            // display Euler angles in degrees
            mpu.dmpGetQuaternion(&q, fifoBuffer);
            mpu.dmpGetGravity(&gravity, &q);
            mpu.dmpGetYawPitchRoll(ypr, &q, &gravity);
            //Serial.print("Phi: ");
            Serial.print(ypr[2] * 18/M_PI);
            //Serial.print("\t theta: ");
            Serial.print(" ");
            Serial.print(ypr[1] * 180/M_PI);
            //Serial.print("\t Psi: ");
            Serial.print(" ");
            Serial.println(ypr[0] * 180/M_PI);
            //delay(100);
        #endif

        #ifdef OUTPUT_READABLE_REALACCEL
            // display real acceleration, adjusted to remove gravity
            mpu.dmpGetQuaternion(&q, fifoBuffer);
            mpu.dmpGetAccel(&aa, fifoBuffer);
            mpu.dmpGetGravity(&gravity, &q);
            mpu.dmpGetLinearAccel(&aaReal, &aa, &gravity);
            Serial.print("areal\t");
            Serial.print(aaReal.x);
            Serial.print("\t");
            Serial.print(aaReal.y);
            Serial.print("\t");
            Serial.println(aaReal.z);
        #endif

        #ifdef OUTPUT_READABLE_WORLDACCEL
            // display initial world-frame acceleration, adjusted to remove gravity
            // and rotated based on known orientation from quaternion
            mpu.dmpGetQuaternion(&q, fifoBuffer);
            mpu.dmpGetAccel(&aa, fifoBuffer);
            mpu.dmpGetGravity(&gravity, &q);
            mpu.dmpGetLinearAccel(&aaReal, &aa, &gravity);
            mpu.dmpGetLinearAccelInWorld(&aaWorld, &aaReal, &q);
            Serial.print("aworld\t");
            Serial.print(aaWorld.x);
            Serial.print("\t");
            Serial.print(aaWorld.y);
            Serial.print("\t");
            Serial.println(aaWorld.z);
        #endif

        #ifdef OUTPUT_TEAPOT
            // display quaternion values in InvenSense Teapot demo format:
            teapotPacket[2] = fifoBuffer[0];
            teapotPacket[3] = fifoBuffer[1];
            teapotPacket[4] = fifoBuffer[4];
            teapotPacket[5] = fifoBuffer[5];
            teapotPacket[6] = fifoBuffer[8];
            teapotPacket[7] = fifoBuffer[9];
            teapotPacket[8] = fifoBuffer[12];
            teapotPacket[9] = fifoBuffer[13];
            Serial.write(teapotPacket, 14);
            teapotPacket[11]++; // packetCount, loops at 0xFF on purpose
        #endif

        // blink LED to indicate activity
        blinkState = !blinkState;
        digitalWrite(LED_PIN, blinkState);
    }
}


If there is a problem with compiling the code you can need MPU and i2c library.

You can find in here :

http://playground.arduino.cc/Main/MPU-6050

Everything is Ok ?

Let's going on.


On this level we will use Adrian Fernandez's code. Of course with various fixes.

For these fixes I have focused on Arduino-MPU6050 communication. You can examine Serial event part of code.

Here is the Processing code:


//Thanks to Adrian Fernandez
//Communication updates by M.Furkan Bahat November 2014
//For more information http://mfurkanbahat.blogspot.com.tr/

import processing.serial.*;
import cc.arduino.*;

int W=1400; //My Laptop's screen width
int H=700;  //My Laptop's screen height
float Pitch;
float Bank;
float Azimuth;
float ArtificialHoizonMagnificationFactor=0.7;
float CompassMagnificationFactor=0.85;
float SpanAngle=120;
int NumberOfScaleMajorDivisions;
int NumberOfScaleMinorDivisions;
PVector v1, v2;


Serial port;
float Phi;    //Dimensional axis
float Theta;
float Psi;

void setup()
{
  size(W, H);
  rectMode(CENTER);
  smooth();
  strokeCap(SQUARE);//Optional

  println(Serial.list()); //Shows your connected serial ports
  port = new Serial(this, Serial.list()[0], 115200);
  //Up there you should select port which arduino connected and same baud rate.
  port.bufferUntil('\n');
}
void draw()
{
  background(0);
  translate(W/4, H/2.1);
  MakeAnglesDependentOnMPU6050();
  Horizon();
  rotate(-Bank);
  PitchScale();
  Axis();
  rotate(Bank);
  Borders();
  Plane();
  ShowAngles();
  Compass();
  ShowAzimuth();
}
void serialEvent(Serial port) //Reading the datas by Processing.
{
   String input = port.readStringUntil('\n');
  if(input != null){
   input = trim(input);
  String[] values = split(input, " ");
 if(values.length == 3){
  float phi = float(values[0]);
  float theta = float(values[1]);
  float psi = float(values[2]);
  print(phi);
  print(theta);
  println(psi);
  Phi = phi;
  Theta = theta;
  Psi = psi;
   }
  }
}
void MakeAnglesDependentOnMPU6050()
{
  Bank =-Phi/5;
  Pitch=Theta*10;
  Azimuth=Psi;
}
void Horizon()
{
  scale(ArtificialHoizonMagnificationFactor);
  noStroke();
  fill(0, 180, 255);
  rect(0, -100, 900, 1000);
  fill(95, 55, 40);
  rotate(-Bank);
  rect(0, 400+Pitch, 900, 800);
  rotate(Bank);
  rotate(-PI-PI/6);
  SpanAngle=120;
  NumberOfScaleMajorDivisions=12;
  NumberOfScaleMinorDivisions=24;
  CircularScale();
  rotate(PI+PI/6);
  rotate(-PI/6);
  CircularScale();
  rotate(PI/6);
}
void ShowAzimuth()
{
  fill(50);
  noStroke();
  rect(20, 470, 440, 50);
  int Azimuth1=round(Azimuth);
  textAlign(CORNER);
  textSize(35);
  fill(255);
  text("Azimuth:  "+Azimuth1+" Deg", 80, 477, 500, 60);
  textSize(40);
  fill(25,25,150);
  text("M.Furkan Bahat", -350, 477, 500, 60);
}
void Compass()
{
  translate(2*W/3, 0);
  scale(CompassMagnificationFactor);
  noFill();
  stroke(100);
  strokeWeight(80);
  ellipse(0, 0, 750, 750);
  strokeWeight(50);
  stroke(50);
  fill(0, 0, 40);
  ellipse(0, 0, 610, 610);
  for (int k=255;k>0;k=k-5)
  {
    noStroke();
    fill(0, 0, 255-k);
    ellipse(0, 0, 2*k, 2*k);
  }
  strokeWeight(20);
  NumberOfScaleMajorDivisions=18;
  NumberOfScaleMinorDivisions=36;
  SpanAngle=180;
  CircularScale();
  rotate(PI);
  SpanAngle=180;
  CircularScale();
  rotate(-PI);
  fill(255);
  textSize(60);
  textAlign(CENTER);
  text("W", -375, 0, 100, 80);
  text("E", 370, 0, 100, 80);
  text("N", 0, -365, 100, 80);
  text("S", 0, 375, 100, 80);
  textSize(30);
  text("COMPASS", 0, -130, 500, 80);
  rotate(PI/4);
  textSize(40);
  text("NW", -370, 0, 100, 50);
  text("SE", 365, 0, 100, 50);
  text("NE", 0, -355, 100, 50);
  text("SW", 0, 365, 100, 50);
  rotate(-PI/4);
  CompassPointer();
}
void CompassPointer()
{
  rotate(PI+radians(Azimuth));
  stroke(0);
  strokeWeight(4);
  fill(100, 255, 100);
  triangle(-20, -210, 20, -210, 0, 270);
  triangle(-15, 210, 15, 210, 0, 270);
  ellipse(0, 0, 45, 45);
  fill(0, 0, 50);
  noStroke();
  ellipse(0, 0, 10, 10);
  triangle(-20, -213, 20, -213, 0, -190);
  triangle(-15, -215, 15, -215, 0, -200);
  rotate(-PI-radians(Azimuth));
}
void Plane()
{
  fill(0);
  strokeWeight(1);
  stroke(0, 255, 0);
  triangle(-20, 0, 20, 0, 0, 25);
  rect(110, 0, 140, 20);
  rect(-110, 0, 140, 20);
}
void CircularScale()
{
  float GaugeWidth=800;
  textSize(GaugeWidth/30);
  float StrokeWidth=1;
  float an;
  float DivxPhasorCloser;
  float DivxPhasorDistal;
  float DivyPhasorCloser;
  float DivyPhasorDistal;
  strokeWeight(2*StrokeWidth);
  stroke(255);
  float DivCloserPhasorLenght=GaugeWidth/2-GaugeWidth/9-StrokeWidth;
  float DivDistalPhasorLenght=GaugeWidth/2-GaugeWidth/7.5-StrokeWidth;
  for (int Division=0;Division<NumberOfScaleMinorDivisions+1;Division++)
  {
    an=SpanAngle/2+Division*SpanAngle/NumberOfScaleMinorDivisions;
    DivxPhasorCloser=DivCloserPhasorLenght*cos(radians(an));
    DivxPhasorDistal=DivDistalPhasorLenght*cos(radians(an));
    DivyPhasorCloser=DivCloserPhasorLenght*sin(radians(an));
    DivyPhasorDistal=DivDistalPhasorLenght*sin(radians(an));
    line(DivxPhasorCloser, DivyPhasorCloser, DivxPhasorDistal, DivyPhasorDistal);
  }
  DivCloserPhasorLenght=GaugeWidth/2-GaugeWidth/10-StrokeWidth;
  DivDistalPhasorLenght=GaugeWidth/2-GaugeWidth/7.4-StrokeWidth;
  for (int Division=0;Division<NumberOfScaleMajorDivisions+1;Division++)
  {
    an=SpanAngle/2+Division*SpanAngle/NumberOfScaleMajorDivisions;
    DivxPhasorCloser=DivCloserPhasorLenght*cos(radians(an));
    DivxPhasorDistal=DivDistalPhasorLenght*cos(radians(an));
    DivyPhasorCloser=DivCloserPhasorLenght*sin(radians(an));
    DivyPhasorDistal=DivDistalPhasorLenght*sin(radians(an));
    if (Division==NumberOfScaleMajorDivisions/2|Division==0|Division==NumberOfScaleMajorDivisions)
    {
      strokeWeight(15);
      stroke(0);
      line(DivxPhasorCloser, DivyPhasorCloser, DivxPhasorDistal, DivyPhasorDistal);
      strokeWeight(8);
      stroke(100, 255, 100);
      line(DivxPhasorCloser, DivyPhasorCloser, DivxPhasorDistal, DivyPhasorDistal);
    }
    else
    {
      strokeWeight(3);
      stroke(255);
      line(DivxPhasorCloser, DivyPhasorCloser, DivxPhasorDistal, DivyPhasorDistal);
    }
  }
}
void Axis()
{
  stroke(255, 0, 0);
  strokeWeight(3);
  line(-115, 0, 115, 0);
  line(0, 280, 0, -280);
  fill(100, 255, 100);
  stroke(0);
  triangle(0, -285, -10, -255, 10, -255);
  triangle(0, 285, -10, 255, 10, 255);
}
void ShowAngles()
{
  textSize(30);
  fill(50);
  noStroke();
  rect(-150, 400, 280, 40);
  rect(150, 400, 280, 40);
  fill(255);
  Pitch=Pitch/5;
  int Pitch1=round(Pitch);
  text("Pitch:  "+Pitch1+" Deg", -20, 411, 500, 60);
  text("Bank:  "+Bank*100+" Deg", 280, 411, 500, 60);
}
void Borders()
{
  noFill();
  stroke(0);
  strokeWeight(400);
  rect(0, 0, 1100, 1100);
  strokeWeight(200);
  ellipse(0, 0, 1000, 1000);
  fill(0);
  noStroke();
  rect(4*W/5, 0, W, 2*H);
  rect(-4*W/5, 0, W, 2*H);
}
void PitchScale()
{
  stroke(255);
  fill(255);
  strokeWeight(3);
  textSize(24);
  textAlign(CENTER);
  for (int i=-4;i<5;i++)
  {
    if ((i==0)==false)
    {
      line(110, 50*i, -110, 50*i);
    }
    text(""+i*10, 140, 50*i, 100, 30);
    text(""+i*10, -140, 50*i, 100, 30);
  }
  textAlign(CORNER);
  strokeWeight(2);
  for (int i=-9;i<10;i++)
  {
    if ((i==0)==false)
    {
      line(25, 25*i, -25, 25*i);
    }
  }
}


Let's watch, what is happening ?



Comments

  1. Hello , and laid out a sketch of the second version . where summed a0 a1 a2 resistor 5k

    ReplyDelete
  2. On YouTube there is a video "artificial horizon + compass (update 2) 1 you use i2c protocol? To adjust the levels needed to change the sketch Arduino .....

    ReplyDelete
    Replies
    1. This work was carried out using mpu6050 and i2c protocol on Youtube video which you are talking about. Yes, To adjust the levels needed to change the sketch Arduino .

      Delete
  3. hi, i cant get the artificial horizon to work, the gui appear but not responsive to my IMU movement.

    ReplyDelete
    Replies
    1. Did you connect Processing to Arduino correctly ? If connection has a problem, movement number will be just zero. For this reason there is no change on Gui.

      Delete
  4. Hi
    The library doesn't work, can you help me please https://github.com/jrowberg/i2cdevlib

    ReplyDelete
    Replies
    1. Hi,
      You can reach the library that I used below.

      https://drive.google.com/file/d/0B_dzoGgyJLgwSFBYVXN5eXRrSU0/view?usp=sharing

      Delete
  5. Using the arduino code i have a lot of problems with the library. Do i need to install both i2c and MPU library? please can you tell me where i can found it?
    I need your help!!!

    Thanks so much!

    ReplyDelete
    Replies
    1. You can see i2c library above, also you can reach mpu6050 library below which i have used.
      https://drive.google.com/open?id=0B_dzoGgyJLgwNVdZVmg5NEtKbFE

      Delete
  6. Merhaba,
    Buradaki yazılımla birlikte magnetometre de kullanmak istersek ne gibi bir değişiklik yapmamız gerekir?

    ReplyDelete
    Replies
    1. Ben Mpu'nun yaw değişimlerini pusulaya yazdırıyorum. Manyetometreden verileri okuyup bu kısımda o verileri yazdırmanız yeterli olacaktır diye düşünüyorum

      Delete
  7. how can i change the monitor laptop with the others?
    if i can, please tell to me. ty

    ReplyDelete
    Replies
    1. I think you'll focus on proccessing part, but i don't have any idea about it.

      Delete
  8. Hello, can you tell me, how did you got your calibration constants? the system works perfectly for me, but i would like to know how to calibrate them.

    ReplyDelete
    Replies
    1. I did not touch any calibration constant, I am using it with standard parameters.

      Delete
  9. why the deviation from compass is high.
    ty

    ReplyDelete
    Replies
    1. There is no real compass on MPU6050, it just takes horizontal changings. I'm using yaw axis.

      Delete
    2. what finally are you using for taking the heading, yaw or psi? seems like you where testing code and changed names, because on processing it's called psi but on the arduino code you are using a macro with a confusing name, what are you using, psi or yaw? Thanks.

      Delete
  10. hello, i have a problem. Why does when i bank the MPU-6050 sensor to the right, the artificial horizon indicator indicates that it is going to the left? And same goes to when i bank it to the left it indicates to the right.

    ReplyDelete
    Replies
    1. I was facing the same problem. I fixed it by making the following changes in lines 6 and 8 of the Horizon() function:
      void Horizon()
      {
      scale(ArtificialHoizonMagnificationFactor);
      noStroke();
      fill(0, 180, 255);
      rect(0, -100, 900, 1000);
      fill(95, 55, 40);
      rotate(Bank); // sign changed to effect roll direction
      rect(0, 400+Pitch, 900, 800);
      rotate(-Bank); // sign changed to effect roll direction

      Hope this helps.

      Delete
  11. Hello,try disconect the connections from your mpu 6050, turn it 180 degrees and connect them again.

    ReplyDelete
  12. Hello, I'll have my MPU-6050 on monday and the first thing I'm going to do is to test your code for making a compass ^^, I am very happy to know that is possible to make a compass with this device because at the beginning I used a magnetometer, but measuring magnetic north while moving is very unstable and I haven't know, because I thought that because is digital it will not suffer on movement as a mechanical compass, but the true is that it did so I was very sad to waste money for nothing and the more problematic thinking was to think that I reached technology, I can't be more impressed than how a gyro works and using the MPU! Thanks, keep working!

    ReplyDelete
  13. Hello. When I compiling your scetch in processing, an error occurs: "The size of this scetch could not be determined from your code. Use only numbers (not variables) for this thize() command. Read the size() reference for more details." How to fix it?

    ReplyDelete
  14. hello, how do you create and design attificial horizontal and compass ? can you explan with me ? I know you use code but before that what you do ?

    ReplyDelete
  15. I am having the same issue in processing, help required please.

    Hello. When I compiling your scetch in processing, an error occurs: "The size of this scetch could not be determined from your code. Use only numbers (not variables) for this thize() command. Read the size() reference for more details." How to fix it?.

    ReplyDelete
  16. This comment has been removed by the author.

    ReplyDelete
  17. Hello Furkan,
    I have made this and it is working quite well.
    However, in your video, the pitch angles 10, 20, 30, 40.....are seen on the artificial horizon display. But on my display, the pitch scale is seen but without the angles. Please tell me what is wrong.

    ReplyDelete

Post a Comment

Popular posts from this blog

Onuncu Yıl Marşı - Arduino

Bir önceki çalışmamızda sizlere Arduino'nun hazır melodilerinden dinletiler sunmuştuk. Bu gün ise sınırları biraz daha zorlayıp Nokia 3310 Besteleyici deneyimime güvendiğim için kodları kurcalayarak bestelediğim Onuncu Yıl Marşı'nı bayrak sallayarak dinletmek istiyorum. Eğer gerçekten Onuncu Yıl Marşı olarak dinlerseniz öyle oluyor, lütfen biraz ön yargı :) (3310'nun besteleyisinden kat be kat zor bir iş olduğunu itiraf etmeliyim) Servo ucuna bağladığım bayrağı sürekli olarak bir sağa bir sola sallama isteğim, Tone.h kütüphanesinin Servo.h kütüphanesini yanında barındırmak istememesi üzerine sekteye uğradı. Timer hatası sebebiyle bunu yapamadım, fakat yılmadım servo'yu direkt melodi sinyalinin geldiği bacağa bağladım. Bu ise her ne kadar dolu dolu bir bayrak sallayış olmasa da gönlümüzü etmeye yetiyor :) Gerekli malzemeler: Servo Hoparlör Bağlantı Kabloları Olmazsa olmazımız bayrağımız. Bağlantının nasıl yapılacağına gelecek olursak Hoparlörün si

Görüntü işleme için Uçuş Denemesi

Merhabalar, Bu çalışmamızda havandan görüntü almak isteyen veyahut bu görüntüleri işlemek isteyen arkadaşlara referans olsun diye iki adet video paylaşacağım. Videoları kişisel bilgisayarınıza indirip görüntü işleme açısından çalışmalar yapabilirsiniz. Diğer taraftan yerde belirlediğimiz bir nesnenin boyutunun irtifa değerlerine göre ekranda kapladığı piksel değişimini inceleyebilirsiniz. Ya da en azından belirli irtifa değerlerinden nesneler ve insanların nasıl göründüğü hakkında genel kültür olur :) İlk videoda 70cm x 70cm beyaz bir levha kullanıldı, diğer taraftan oturan, ayakta ve yürüyen insan figürleri de videoda mevcut. Bunların çeşitli irtifa değerlerine göre dikey şekilde konumlandırılmış, yere doğru bakan kameradan nasıl göründüğü konusunda fikir sahibi olmanıza sebep olacağını düşünmekteyim. İkinci videoda 30-100 metre arasında dolaşan (genelinde 45 metre civarında) bir insansız hava aracından alınan görüntüler mevcut. Aşağı konumlandırılmış hedefler 70 cm x
